Lock way |
Double self-lock |
Preform neck |
120mm |
Preform weight |
70g |
Core&cavity |
S136 |
Cavity No. |
12 |
Copper nozzle |
Material from Jiangxi |
Heating plate |
P20 |
Heater strip |
Import Germany |
Sprue Runner |
H13 |
Clinder,clinder cap,piston |
AL |
Valve pin |
Punch(from Japan) |
Insulation mat(cap) |
Dupont( from America) |
Copper plate |
Material from Jiangsu |
Heating ring |
Material from Guangdong |
Reducing elbow |
Material from Guangdong |
Temperature controller |
Material from Ningbo,Japan |
Mould plate |
4Cr13/ P20 |
Lifetime |
At least 2million Shots |
Hardness |
HRC45-HRC48 |
Slide block |
P20 |
Heat block |
P20 |
Exporter country standard voltage |
380V/3PH/50HZ |
Packing |
1.Outside package:Standard wooden cases;2.Inner package: Stretch waterproof film & Each Mold painted anti-rust oil. |
Delivery time |
Within 40 working days after prepayment |
Term of Payment |
30% T/T deposit,70% T/T before delivery after confirmation of testing samples. |
Guarantee |
1Year after-sale service.If the mould is damaged without artifical damage,Engineers available to service machinery overseas |
Test parameters and videos will be sent when testing the mould. |

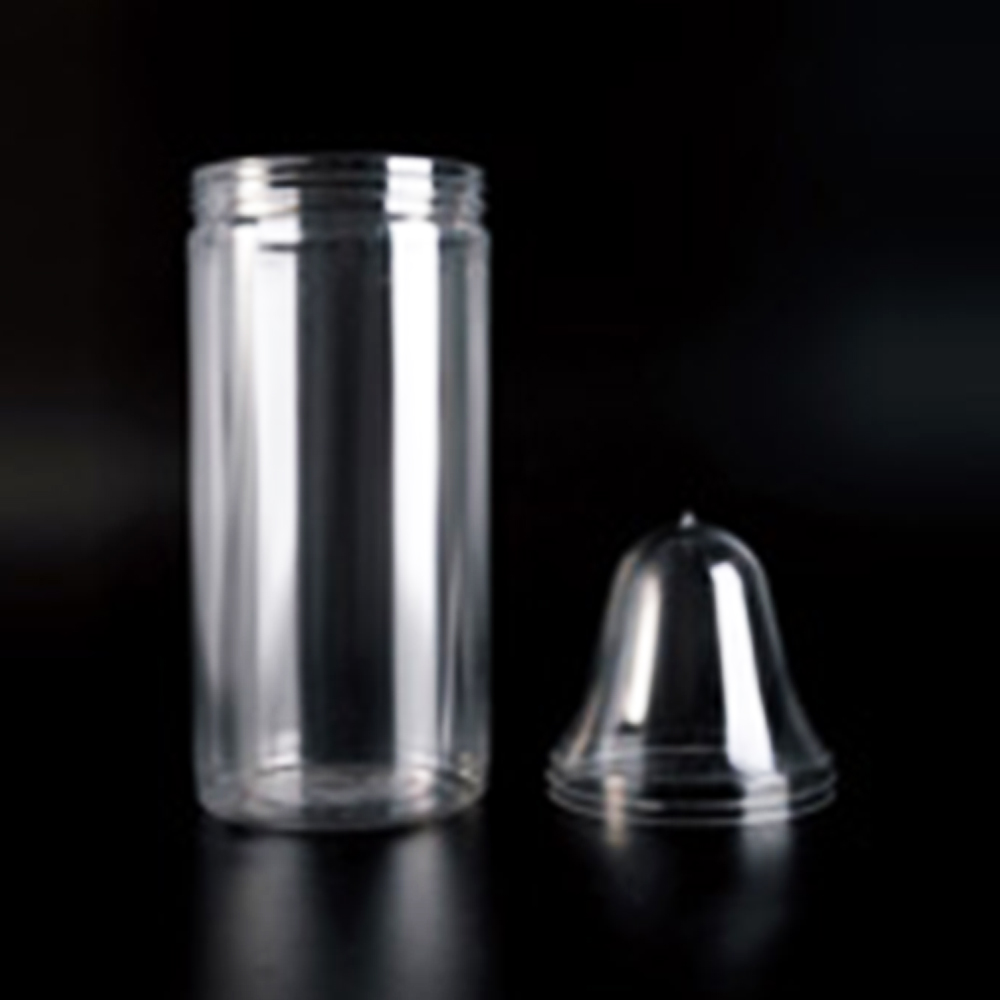

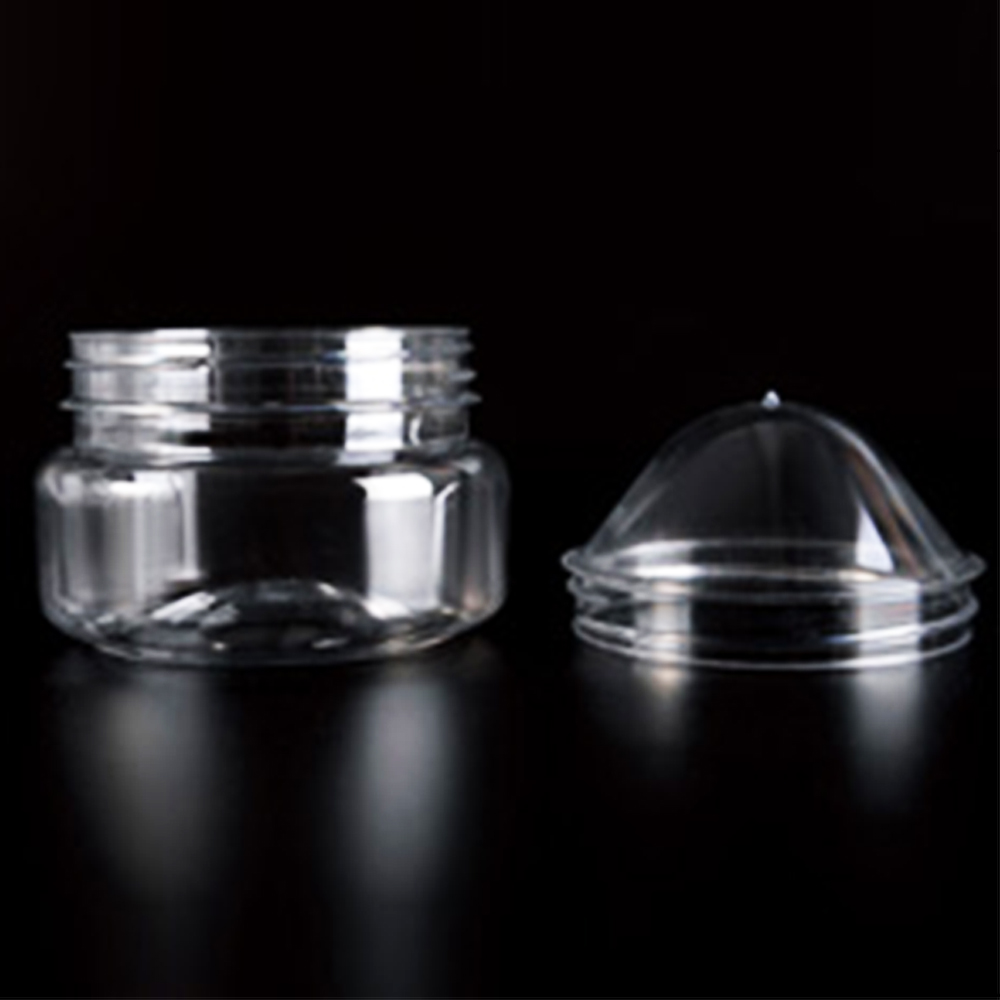

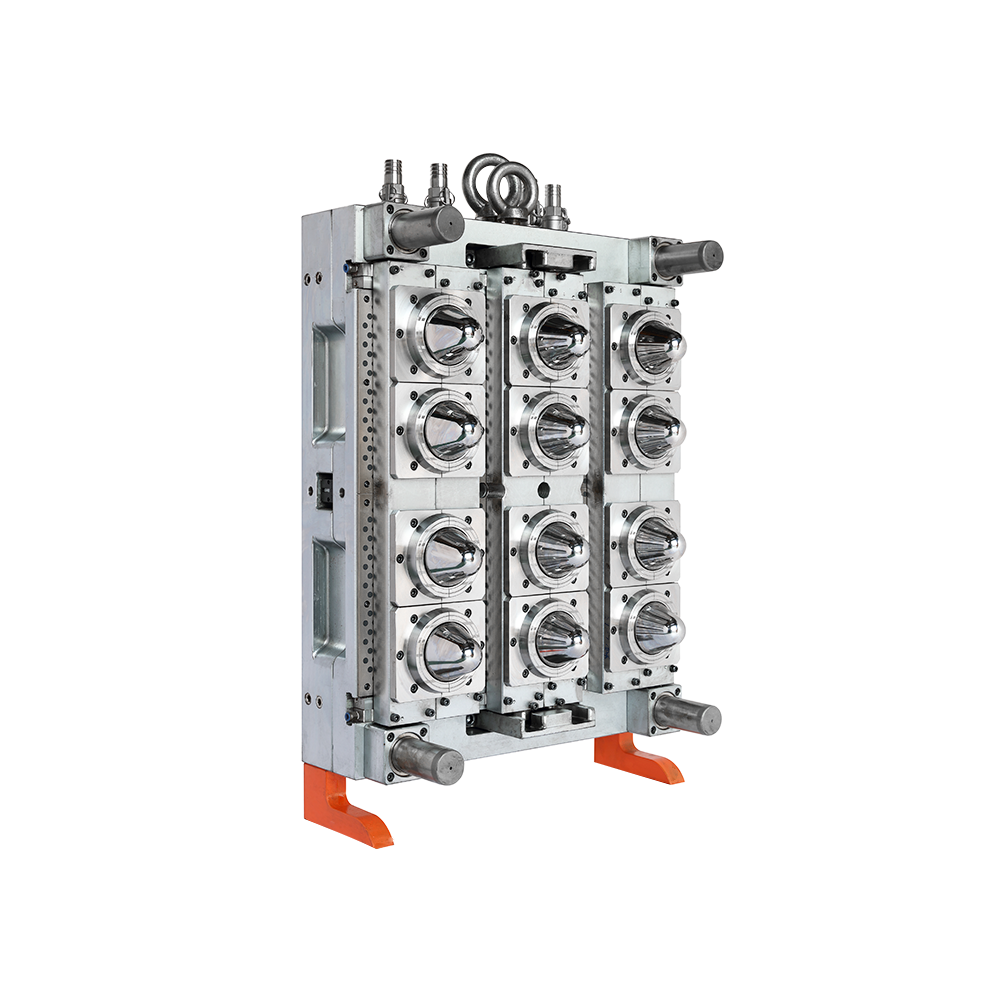

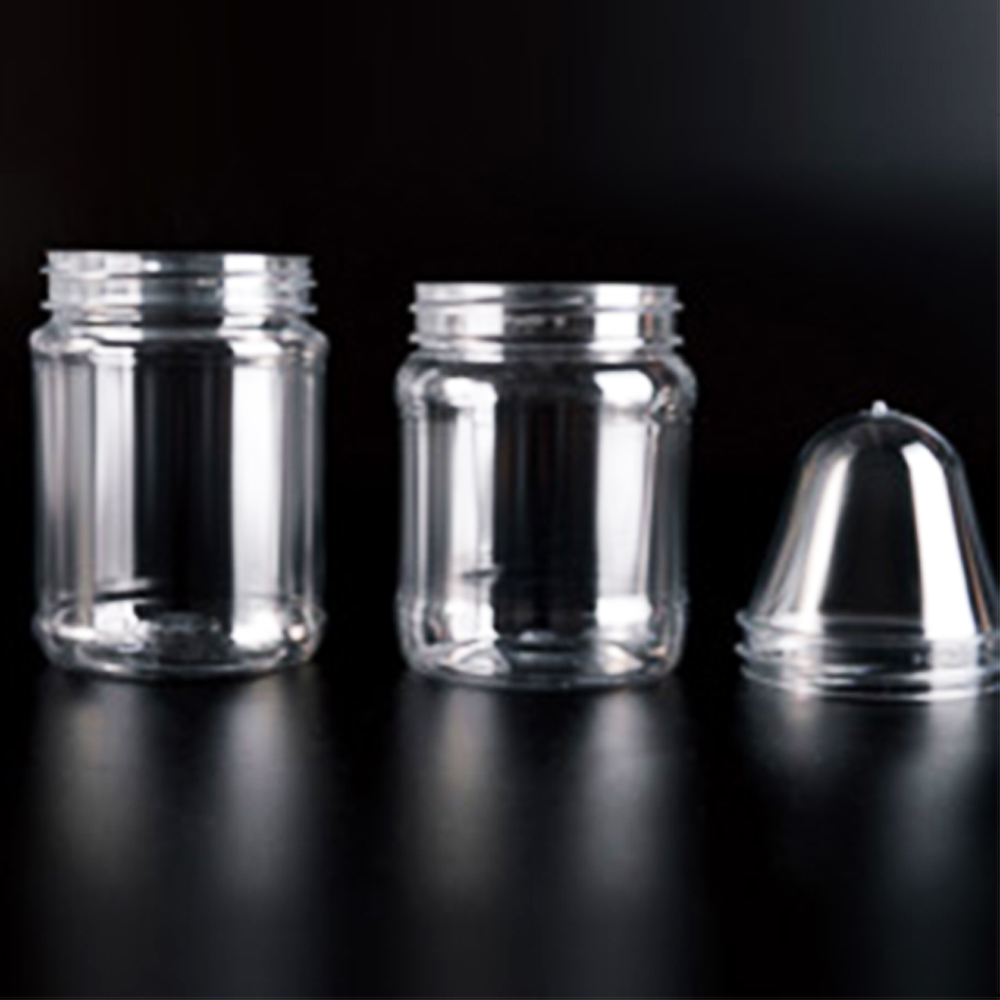

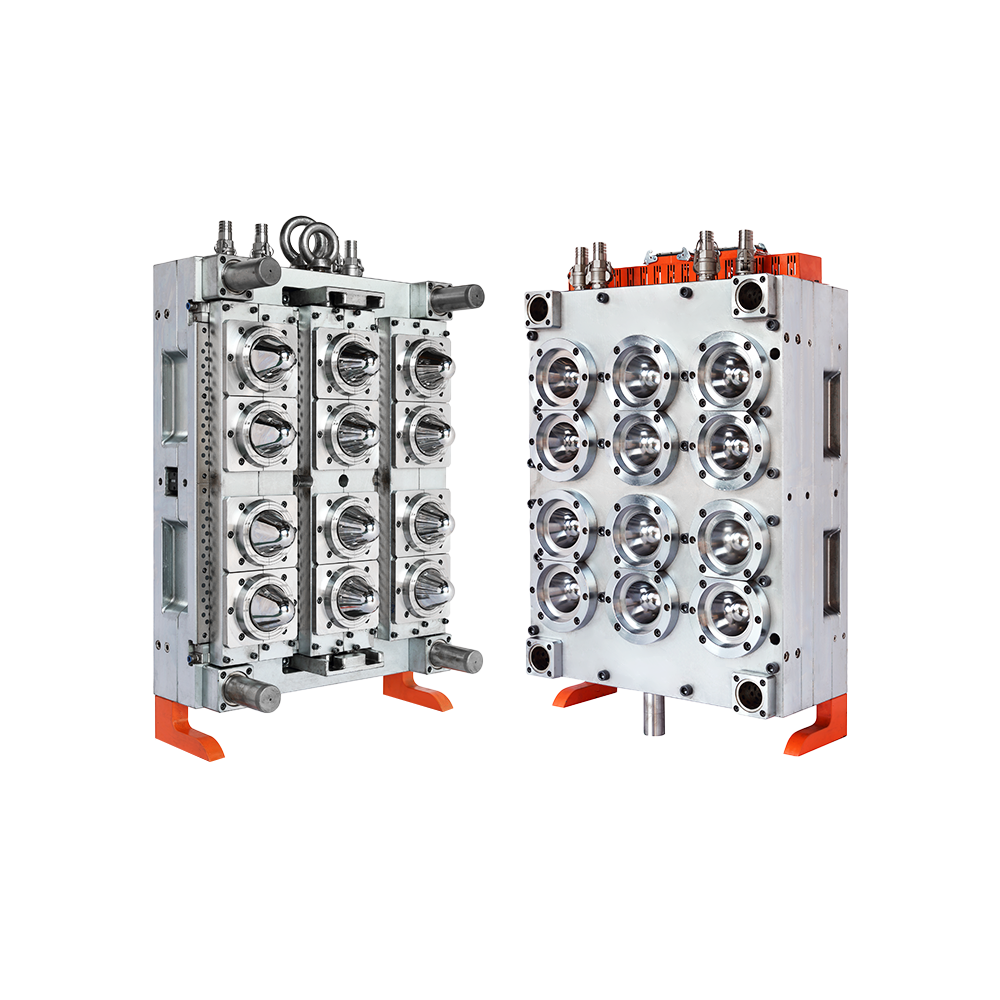

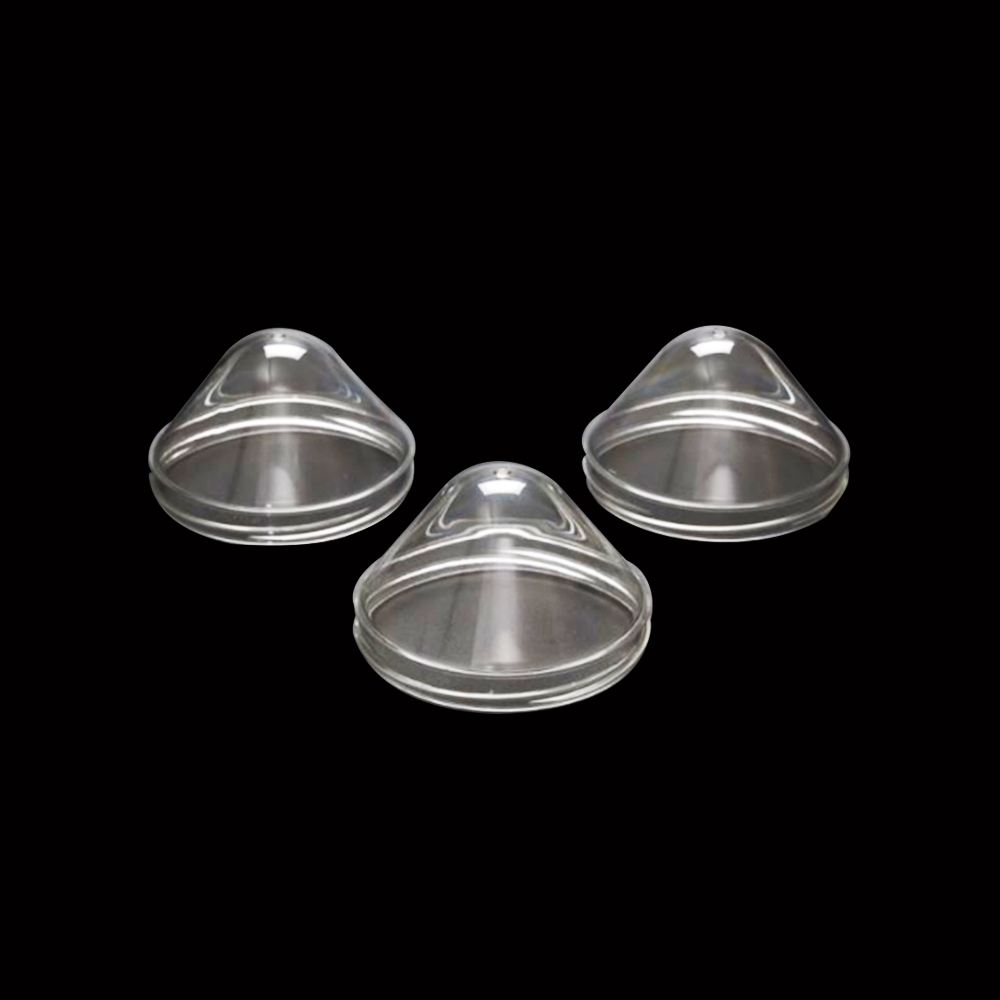

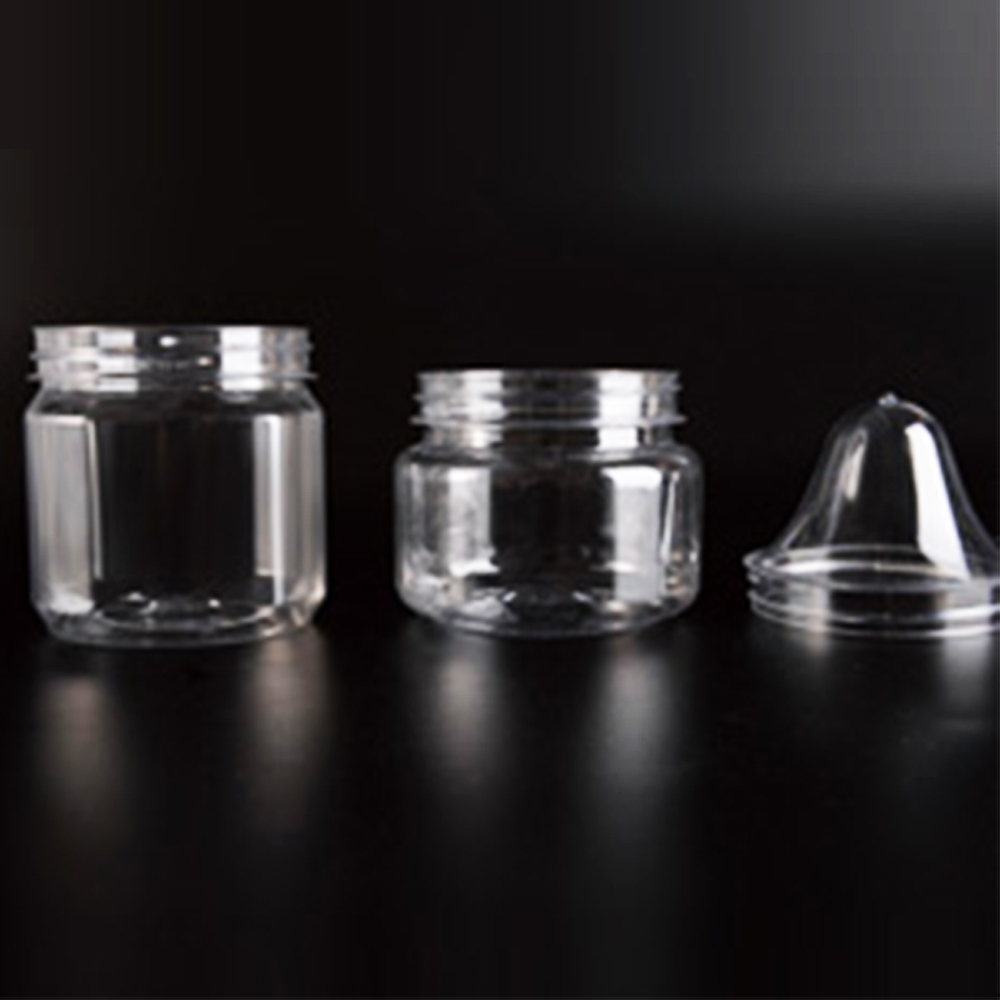

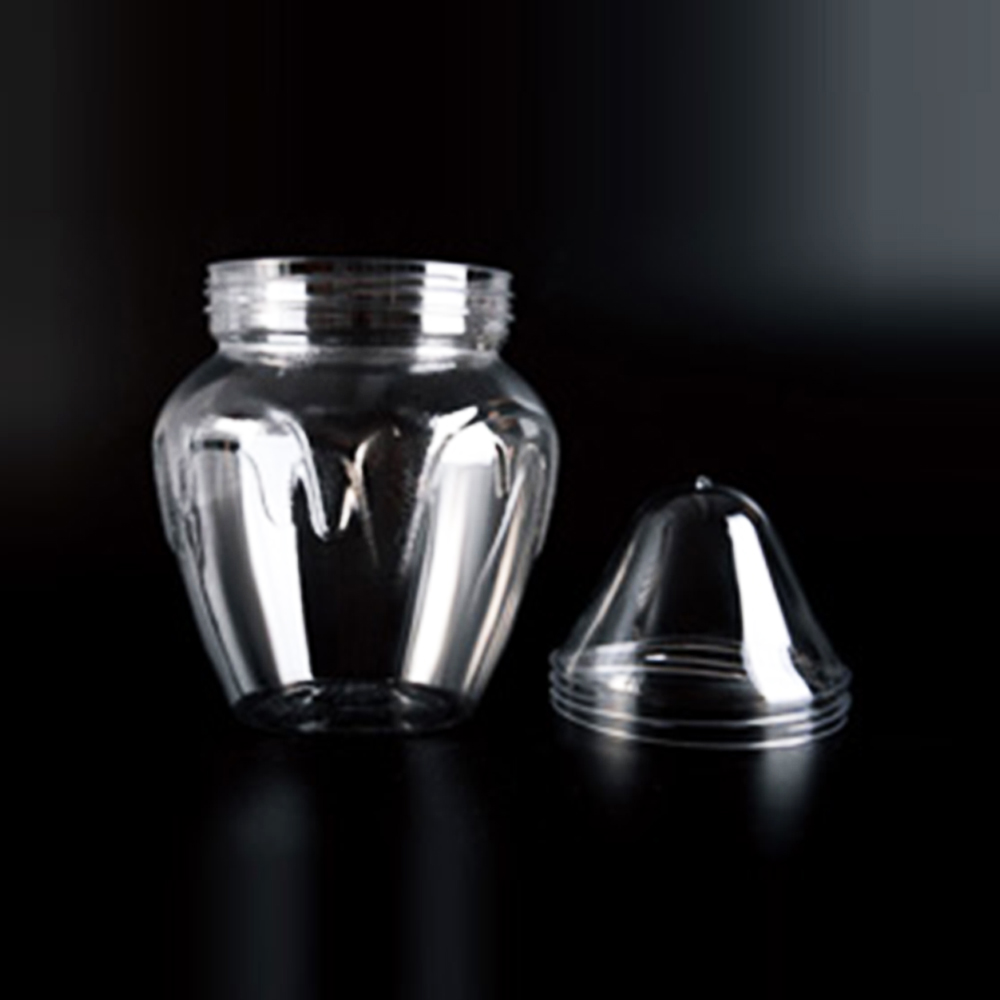

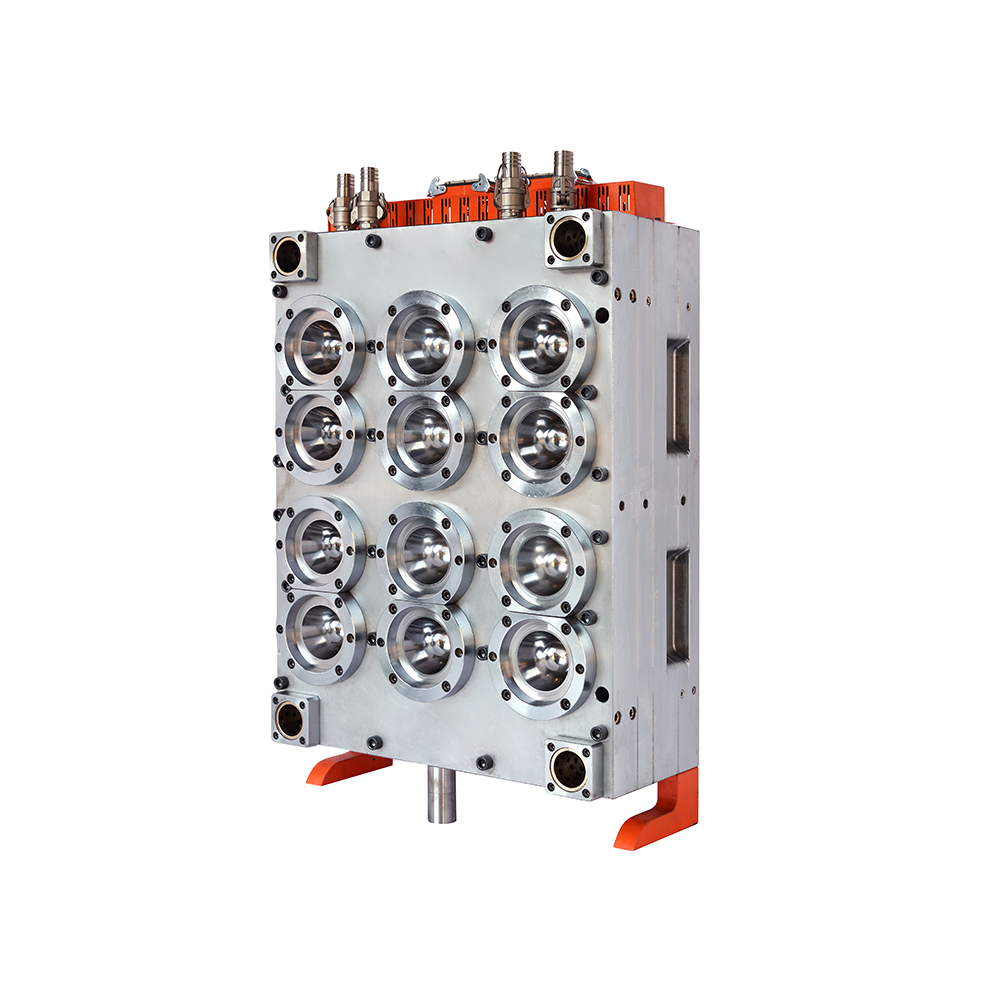

This mould is used to produce 120mm 70g wide mouth preform.It has self-lock and lock way,The cavity is 12. It adopts high quality material from Jiangxi .And it operates with the temperature controller from Ningbo and the core & cavity from S 136 ,The copper nozzle is made from imported Germany(refined Cu) used in this mould. Heat plate is P 20 and heater strip is also import material from Germany. Insulation mat is Dupont made in America,Clinder cap and valve pin are punch by Japan.
This mould is made of 4Cr13 steel,hardness up to HRC48-49, High temperature resistant, Advantageous price and quality. Professional manufacturer mould manufacturer in China, provide the wide range of plastic molding design and technical service overnight!
This mould is our new mold,with fast and high-quality making.It has a same structure as our mould but with a better inner wall design.120mm preform moulds,high quality,preform weight from 70g.
We are a professional production of mold,Spare Parts and Mould Processing≤≥20 years.We have our own sales team,technical team, provide the best solution for you!
