28mm 22g preform mould

28mm 22g preform mould

Focus on every detail of product manufacturing to create more value for customers.

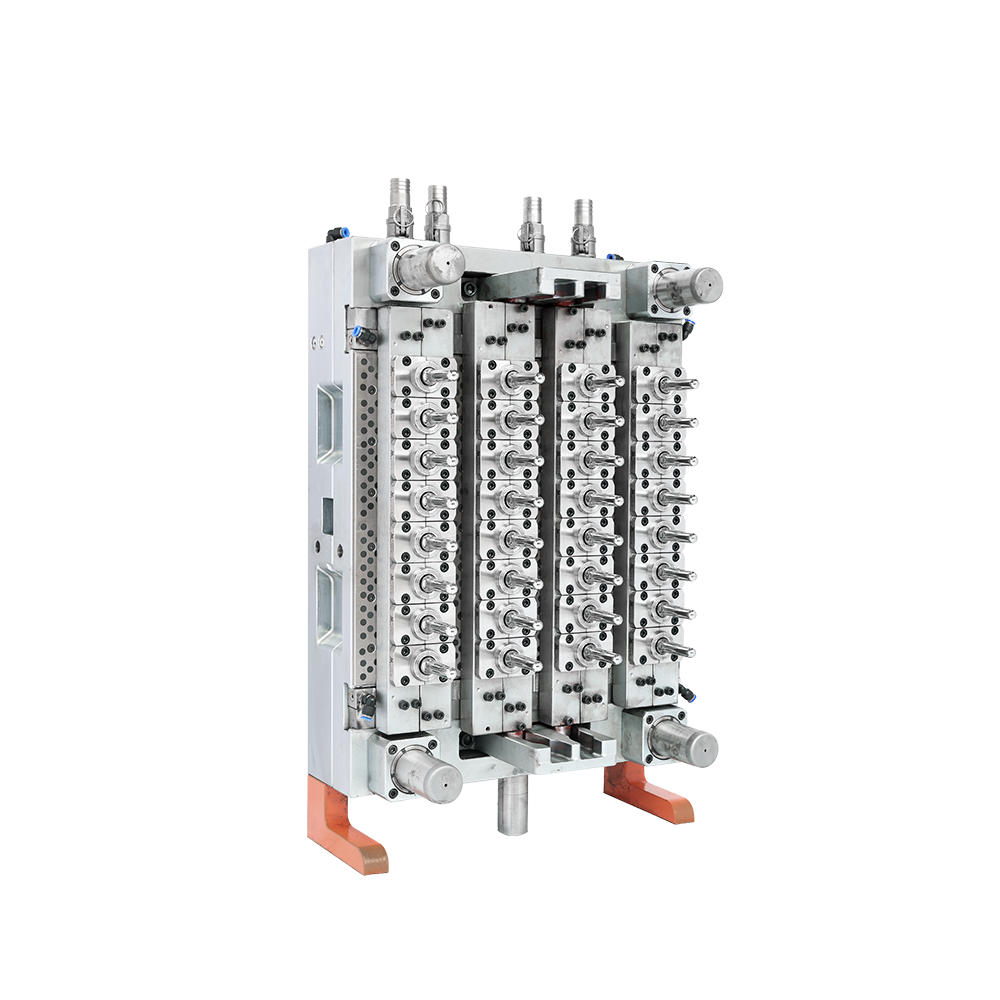

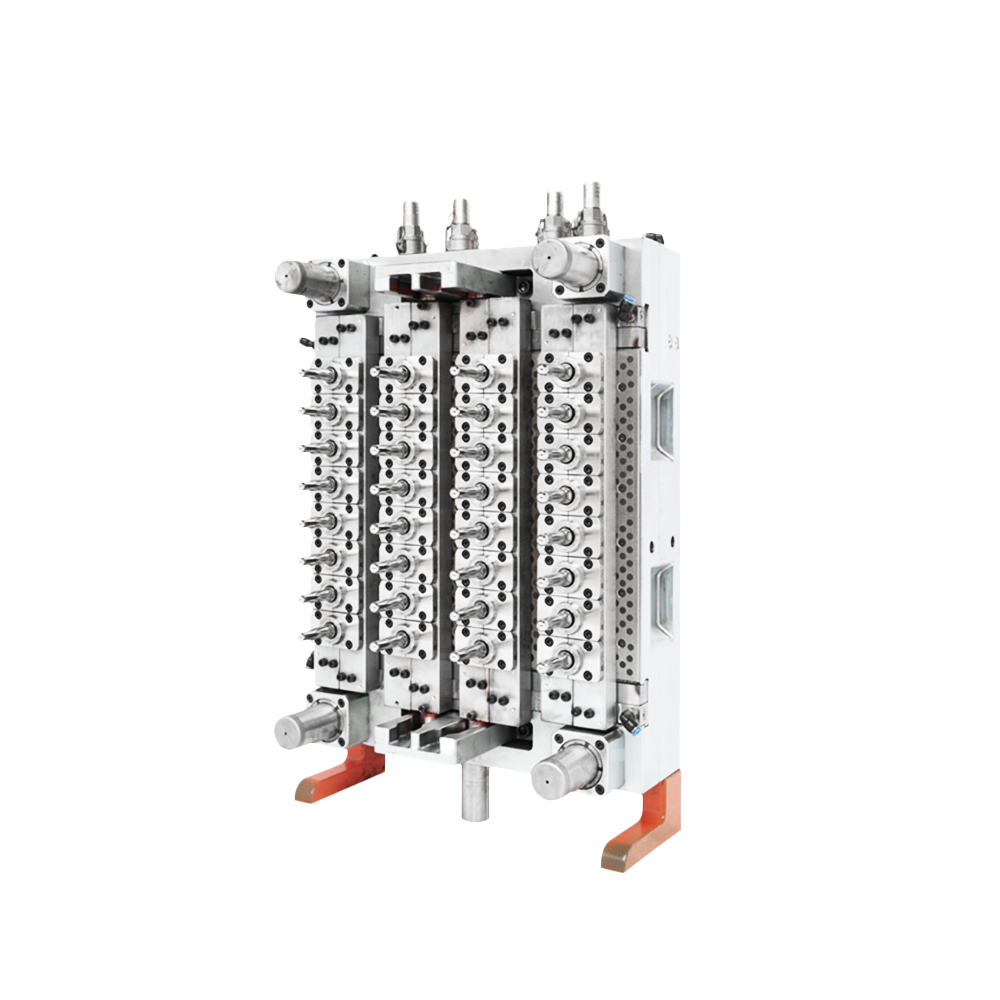

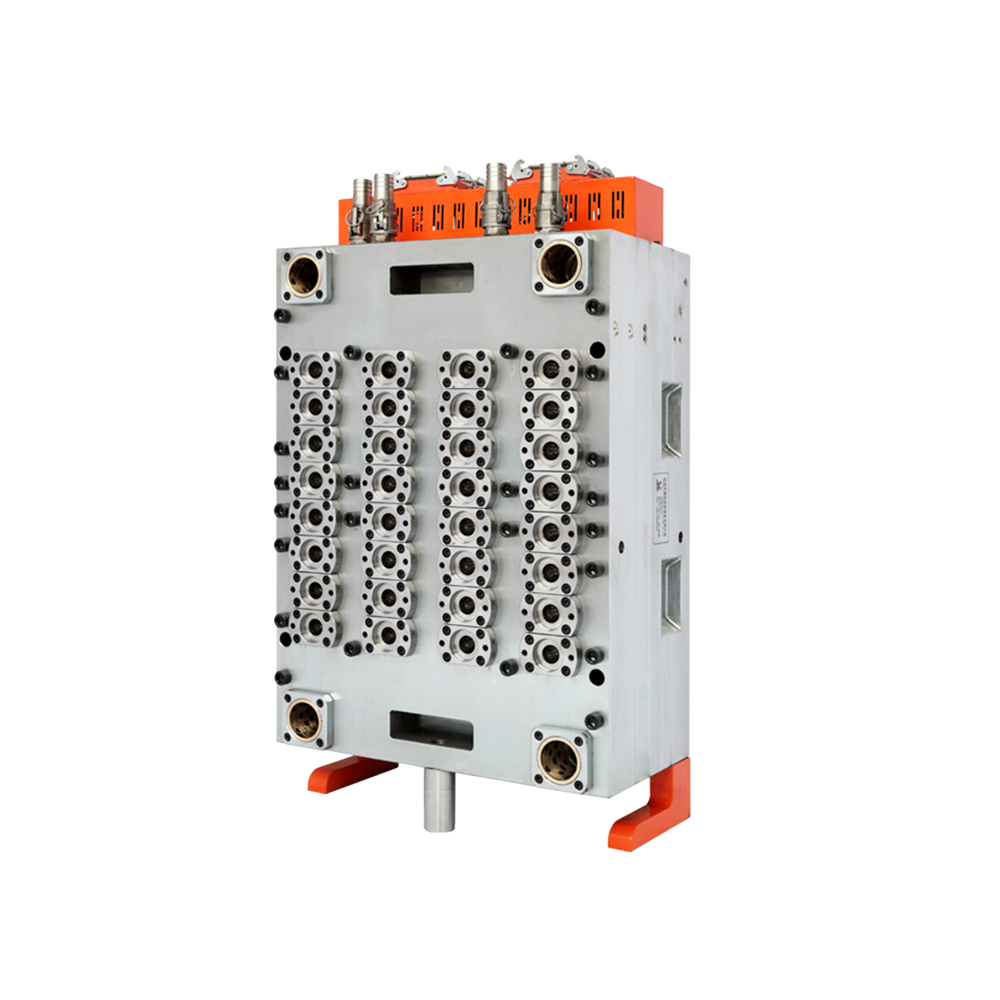

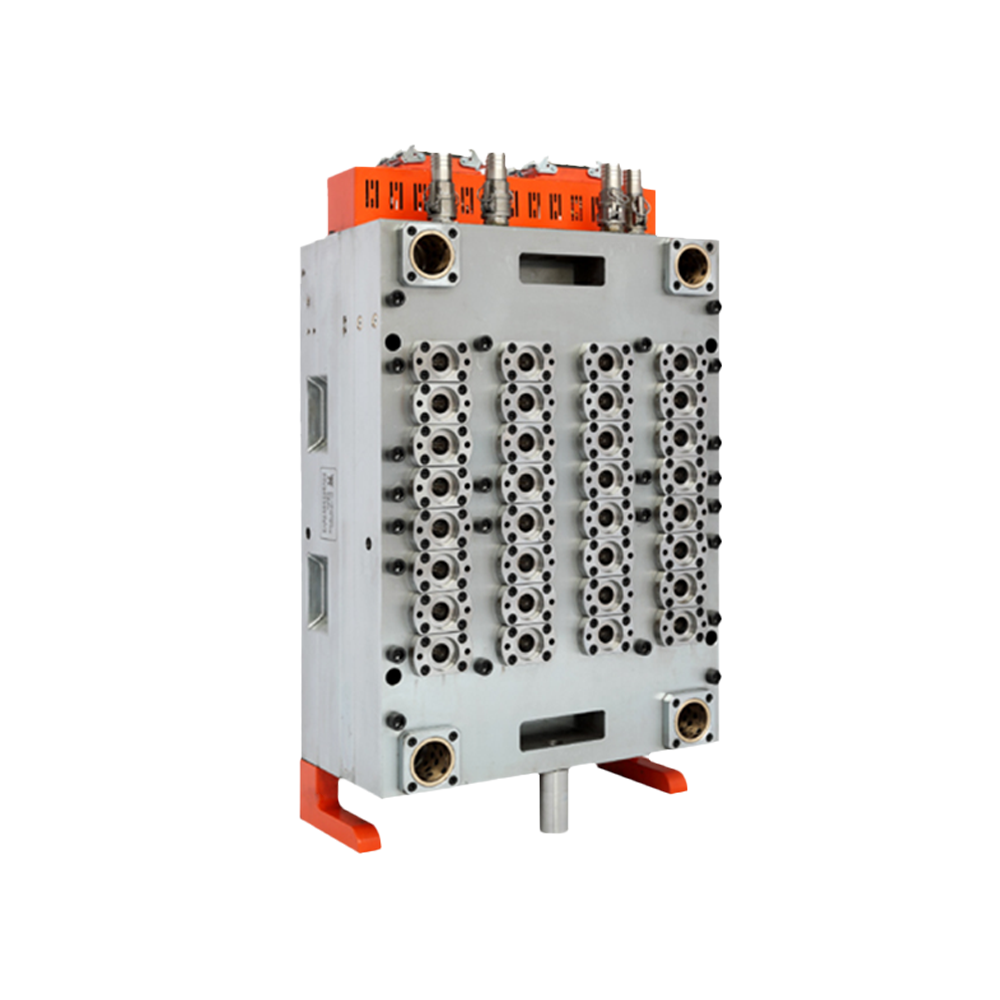

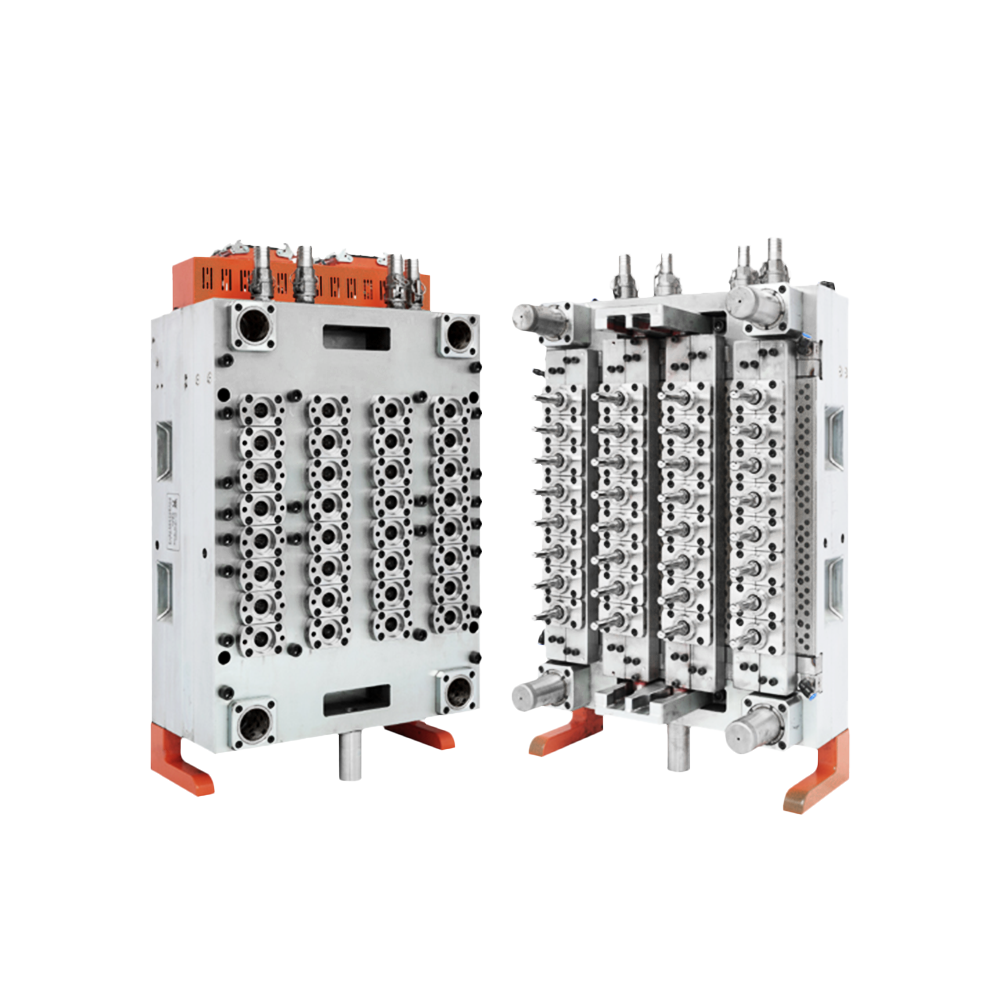

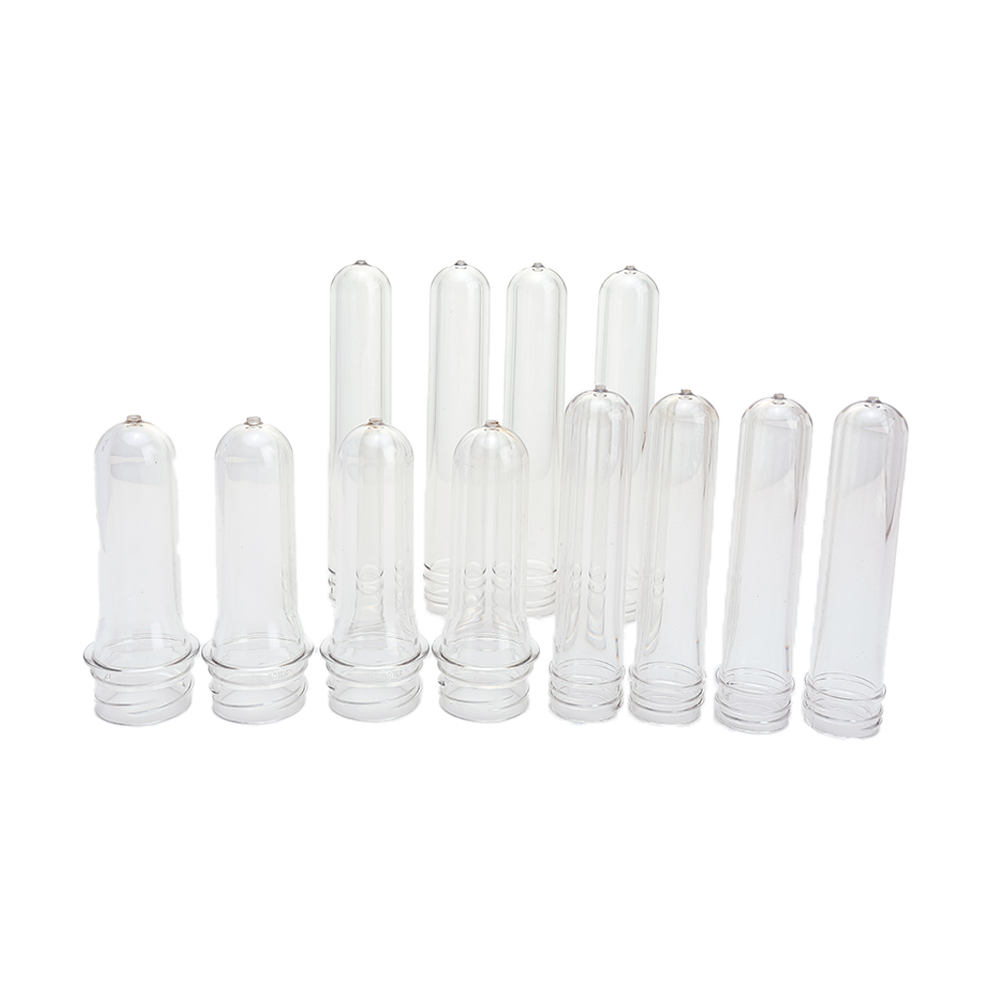

32 cavities 28 mouths 22g water bottle beverage bottle series preform mould
It adopts multi-stage double taper positioning technology, each cavity has a single independent mold clamping, and adopts a multi-stage taper positioning system to ensure mold concentricity (eccentricity within 0.05-0.06mm). S136 (hardness>HRC45) is selected for the cavity and core of the mold. The threaded port is manufactured according to international standards, and the material is imported nitride steel (hardness>HRC60). The unique hot runner system ensures the same pressure and PET flow ratio of each cavity.
  1. We specialize in the production of needle valve molds without the need for manual cutting of the glue port.
  2. The use of advanced hot runner system ensures that the AA value of the product is at a relatively low level.
  3. Reasonable cooling water channel design strengthens the cooling effect of the mold and effectively shortens the injection cycle.
  • Lock way Double self-lock
    Preform neck 28mm
    Preform weight 22g
    Core&cavity S136
    Cavity No. 32
    Copper nozzle Material from Jiangxi
    Heating plate P20
    Heater strip Import Germany
    Sprue Runner H13
    Clinder,clinder cap,piston AL
    Valve pin Punch(from Japan)
    Insulation mat(cap) Dupont( from America)
    Copper plate Material from Jiangsu
    Heating ring Material from Guangdong
    Reducing elbow Material from Guangdong
    Temperature controller Material from Ningbo,Japan
    Mould plate 4Cr13/ P20
    Lifetime At least 2million Shots
    Hardness HRC45-HRC48
    Slide block P20
    Heat block P20
    Exporter country standard voltage 380V/3PH/50HZ
    Packing 1.Outside package:Standard wooden cases;2.Inner package: Stretch waterproof film & Each Mold painted anti-rust oil.
    Delivery time Within 40 working days after prepayment
    Term of Payment 30% T/T deposit,70% T/T before delivery after confirmation of testing samples.
    Guarantee 1Year after-sale service.If the mould is damaged without artifical damage,Engineers available to service machinery overseas
    Test parameters and videos will be sent  when testing the mould.

    Here we have a 28mm 22g Preform Mould with lock way double self-lock. It is made from S136 material and the nozzle is Material from Jiangxi. It has a heating plate that is made in Germany. The valve pin is punch(from Japan). We also have 4Cr13/ P20 mould plate and lifetime of 2 million shots.
    We can produce all kinds of plastic injection moulds which are made of different materials,shape and sizes.The core is made of high quality steel and our moulds test good in use.We specialize in the design and manufacture of pre-engineered plastic products and precision metal parts that meet the ever-increasing demands of modern-day industry.Every piece of mould is carefully examined before it leaves our factory,in order to ensure that they comply with local and international standards. This ,will give your business a competitive edge as well as customer satisfaction.
    Welcome to our factory for your selection,our Mould is made of 4Cr13/ P20,The most popular alloy steel nowadays.Because the chemical composition of 4Cr13/ P20 steel is good and the hardness is enough hard with good shape stability.In addition,P20 Alloy Steel Mold also has high strength and wear resistance,good processing performance and suitable for high temperature and high pressure molding.
    Our mould have been exported to amny countries and win the trust from customers.Customers are very satisfied with our high quality products,good service and reliable quality.We provide high quality & low price products. If you need more information or prices please contact us at any time!

Taizhou Huangyan Xuejun Mould Factory

More than 15 years of experience in mould manufacturing

Huangyan City is located in the middle of the golden coastline of Zhejiang Province. Its mould industry has more than 60 years, and the total production accounts for about 1/10 of the whole country. It is famous as “Mould Town” in China. Taizhou Huangyan Xuejun Mould corporation is located in the Beicheng Industry Zone in Huangyan, surrounded by high-speed rail, highway, airport, port and other facilities, forming a reasonable layout and convenient and fast transportation system.
Huangyan Xuejun Moulding factory is behind of Huangyan, China Mould Expo City, which is the Provincial High-tech Special Industry, the National Torch Program plastic mould base, as well as the first global mould processing equipment and raw material one-stop purchasing center with complete peripheral supporting industry and obvious location advantage. Custom 28mm 22g preform mould Maker

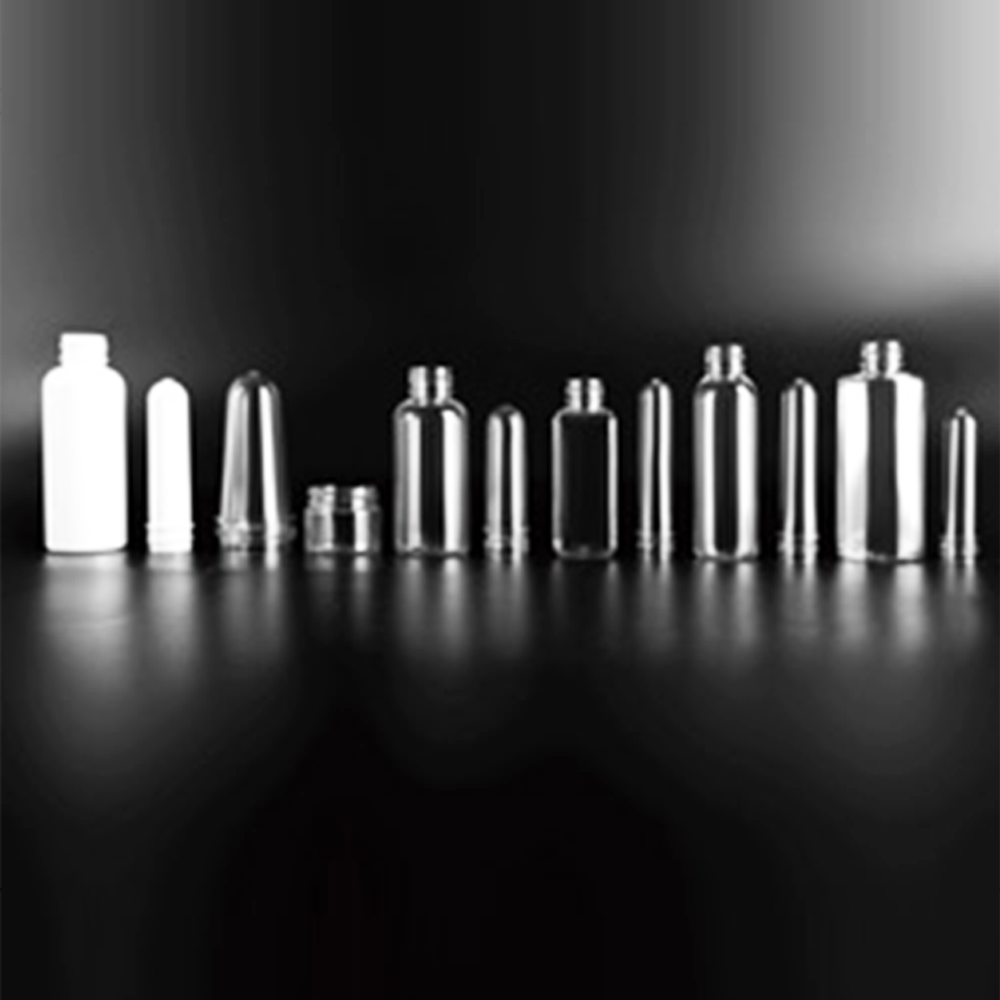

Xuejun Mould Factory was founded in 2004s, it is specialized in PET preform moulds, bottle moulds, PET moulds, bottle cap moulds, and various other packaging moulds. Our company has more than 15 years of mould manufacturing experience. During this period, Xuejun’s mould products have been developing to be more precise, more complex and more economical. The technique continues improving and the production lead time continues shorten. Mould production forwards information, refinement and automation in order to adapt the increasing production capacity.
