Lock way |
Double self-lock |

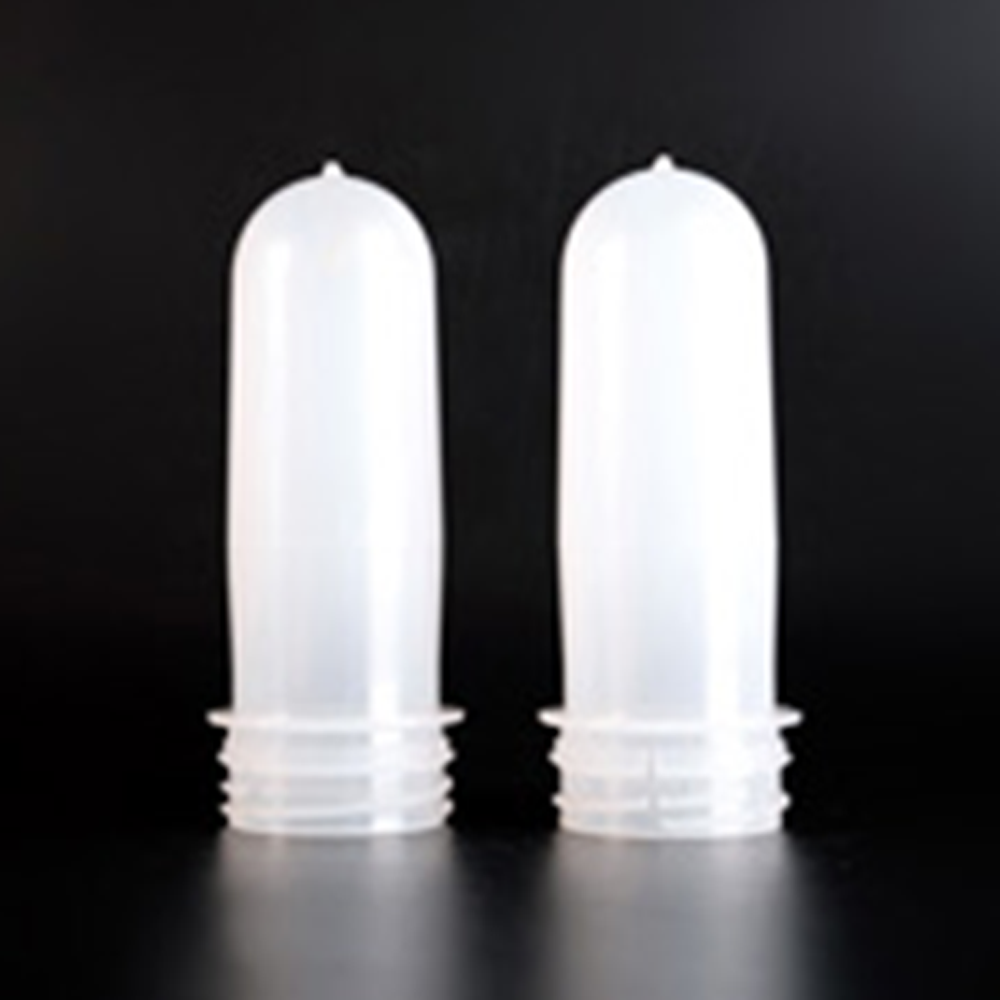

Preform neck |
28mm |
Preform weight |
22g |
Core&cavity |
S136 |
Cavity No. |
32 |
Copper nozzle |
Material from Jiangxi |
Heating plate |
P20 |
Heater strip |
Import Germany |
Sprue Runner |
H13 |
Clinder,clinder cap,piston |
AL |
Valve pin |
Punch(from Japan) |
Insulation mat(cap) |
Dupont( from America) |
Copper plate |
Material from Jiangsu |
Heating ring |
Material from Guangdong |
Reducing elbow |
Material from Guangdong |
Temperature controller |
Material from Ningbo,Japan |
Mould plate |
4Cr13/ P20 |
Lifetime |
At least 2million Shots |
Hardness |
HRC45-HRC48 |
Slide block |
P20 |
Heat block |
P20 |
Exporter country standard voltage |
380V/3PH/50HZ |
Packing |
1.Outside package:Standard wooden cases;2.Inner package: Stretch waterproof film & Each Mold painted anti-rust oil. |
Delivery time |
Within 40 working days after prepayment |
Term of Payment |
30% T/T deposit,70% T/T before delivery after confirmation of testing samples. |
Guarantee |
1Year after-sale service.If the mould is damaged without artifical damage,Engineers available to service machinery overseas |
Test parameters and videos will be sent when testing the mould. |
Our company has specialized in producing mold for 10 years,we are professional player in this field.We have our own factory with experienced technical staffs and skilled workers.We provide OEM service as well.
we are offering you this mould to test our rigidity.We guarantee that the mould can be used at least two million times,and it will not be broken in this period of time.If it is broken due to natural disaster,you can send back your money or ask for a new mould made after examination by our engineers.
A mould is a highly-durable, long-lasting and valuable tool for producing multiple replicas of your product. If a mould works well, it can be used continuously for many years. Moulds are made from high-grade alloy steel and stainless steel, making them easy to clean and maintain.

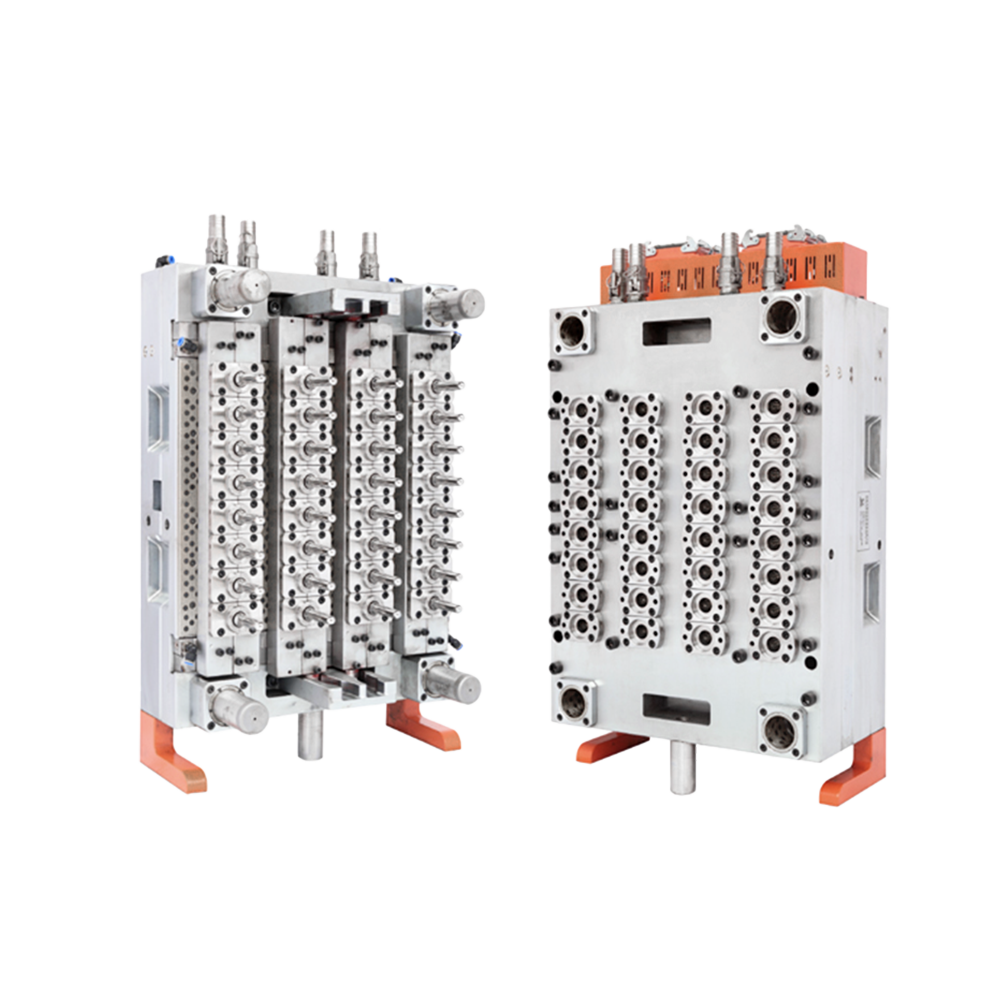

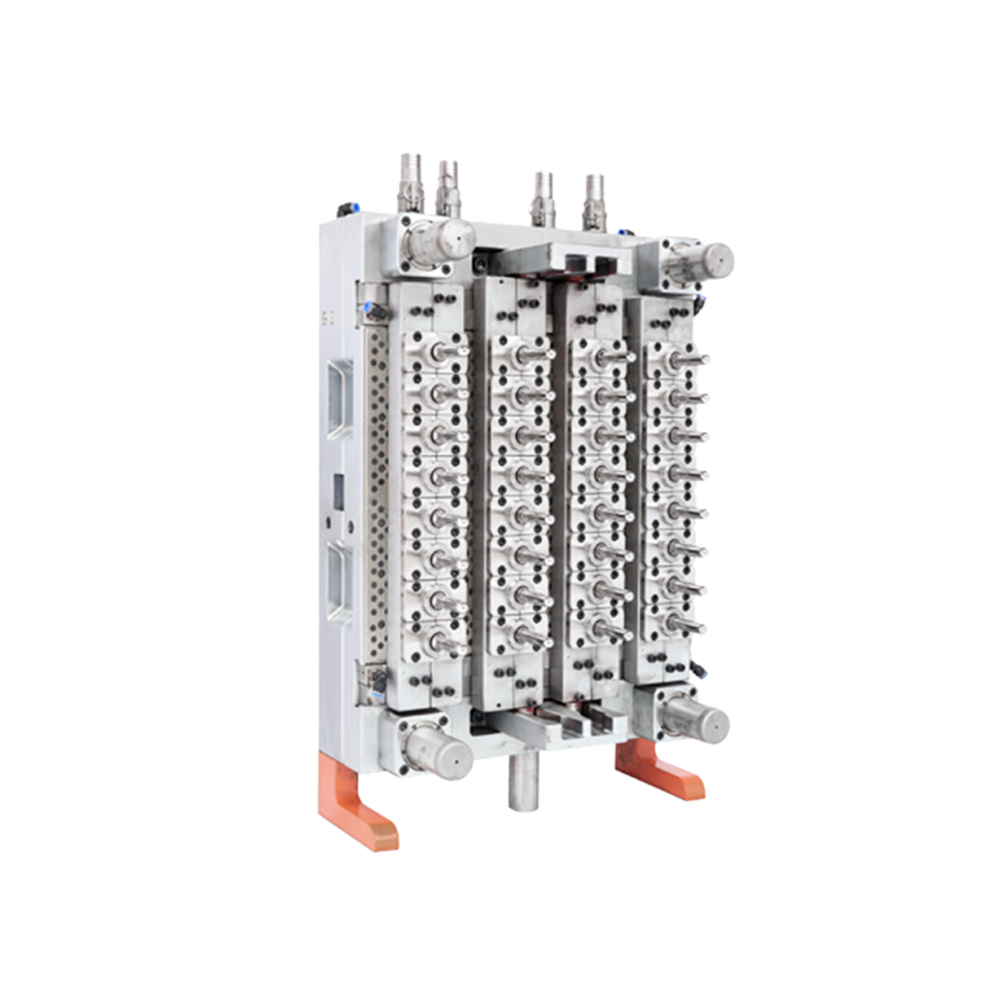

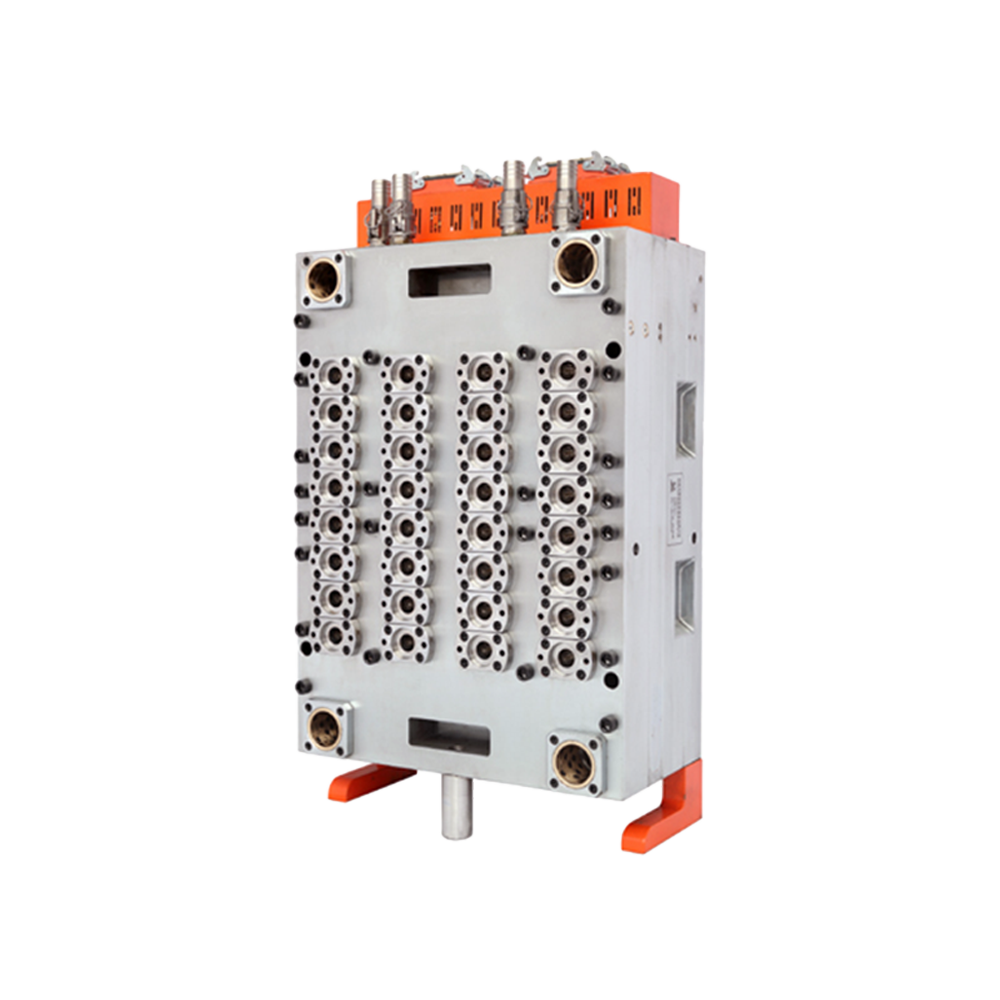

This preform mold is a valve lock actuator type produced by us.The mould can be customized according to customers' needs,such as the number of cavities,the size of nozzles and so on.We choose high quality materials to make moulds,which provide good performance and less rejection rate.We have strict process control to inspection & test the products before delivery.
