85mm 47g wide mouth preform mould Maker

What we provide to you is not only a product, but a good solution,
Professionalism comes from the grasp of details.

85mm 47g wide mouth preform mould

85mm 47g wide mouth preform mould

Focus on every detail of product manufacturing to create more value for customers.

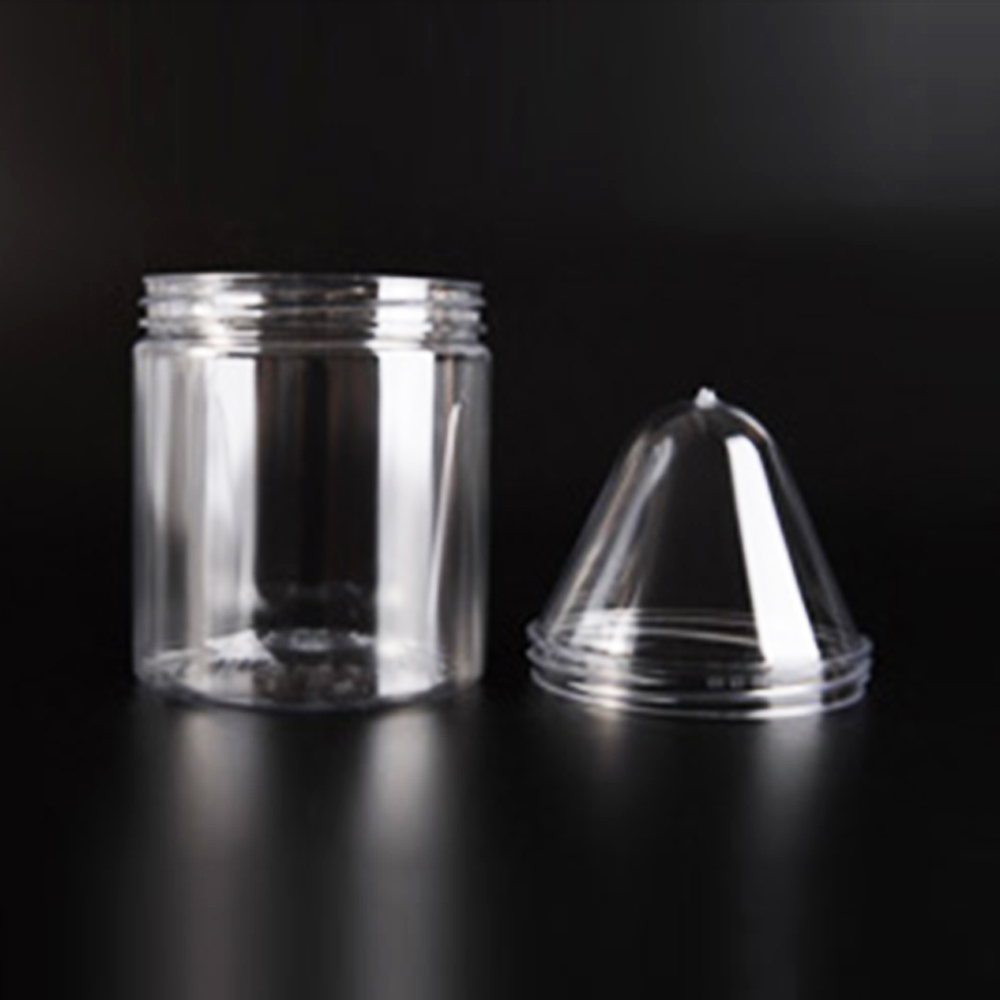

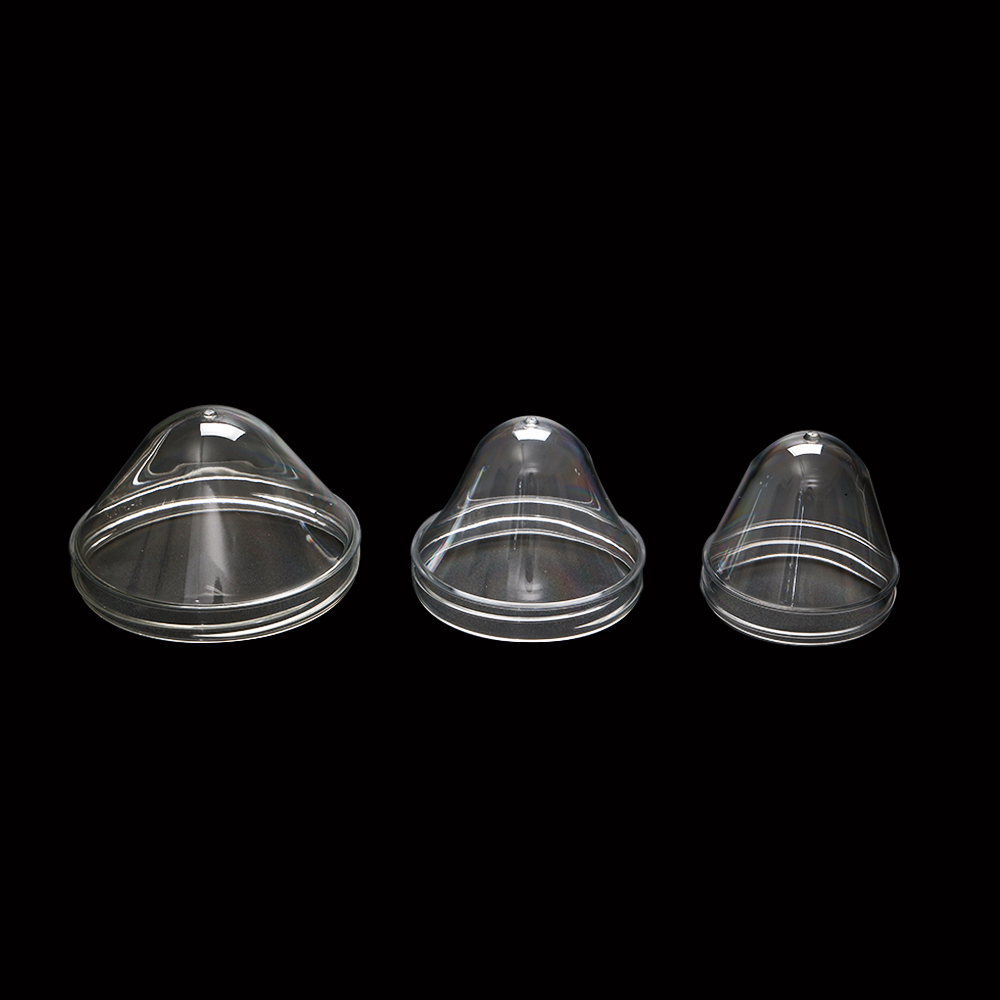

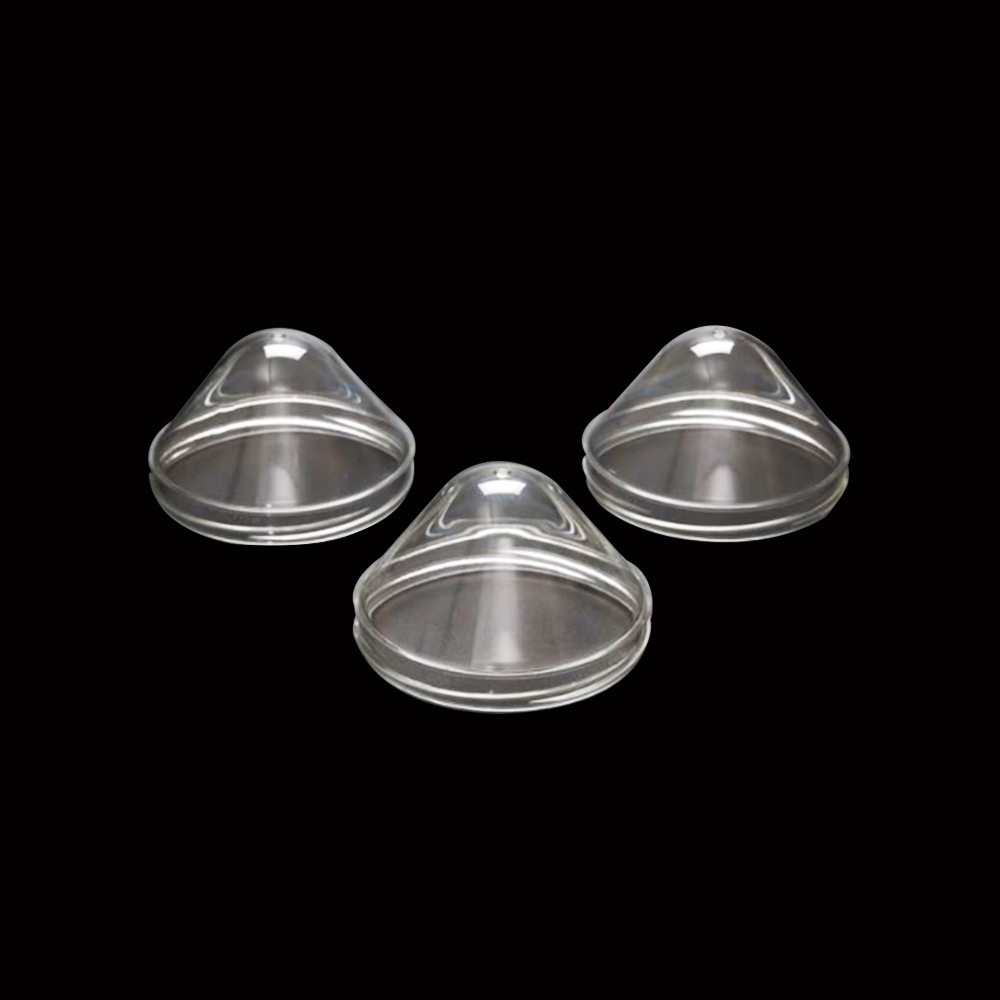

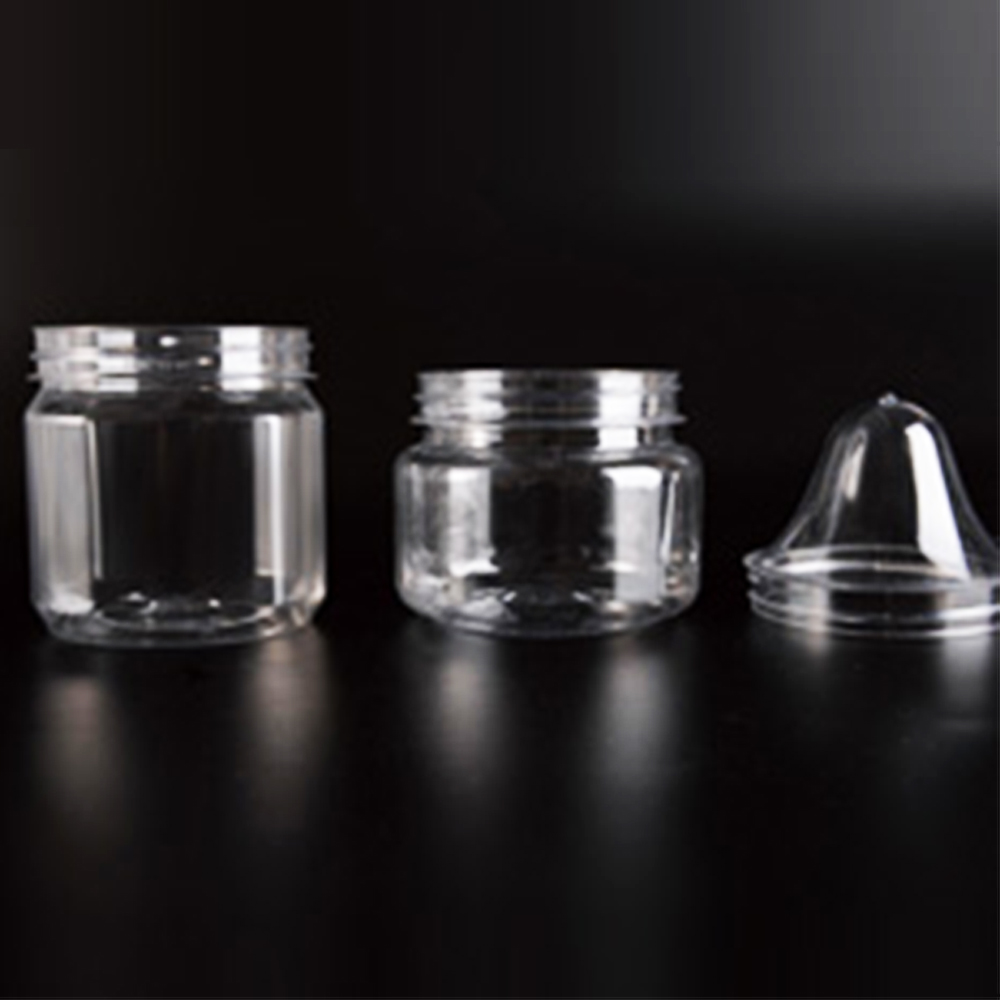

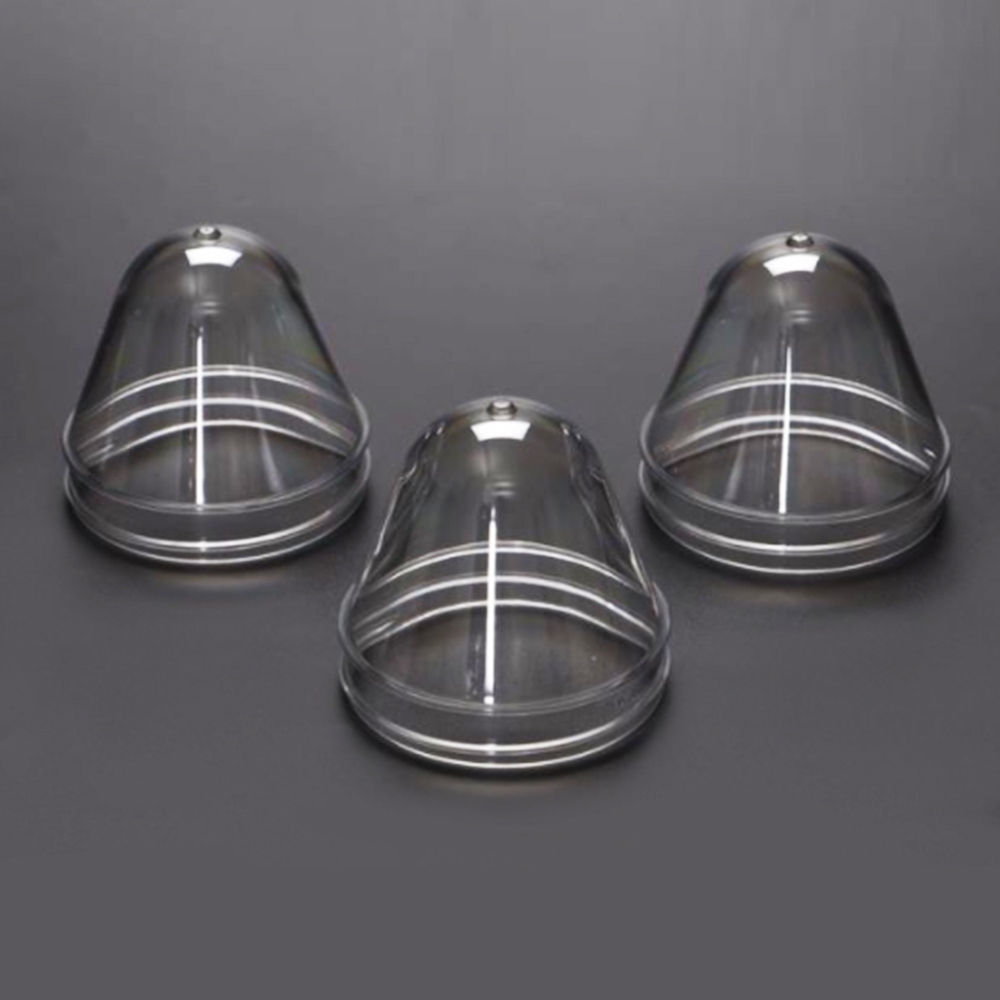

8cavity 85mouth 47g wide mouth bottle for preform mold of dried fruit jar

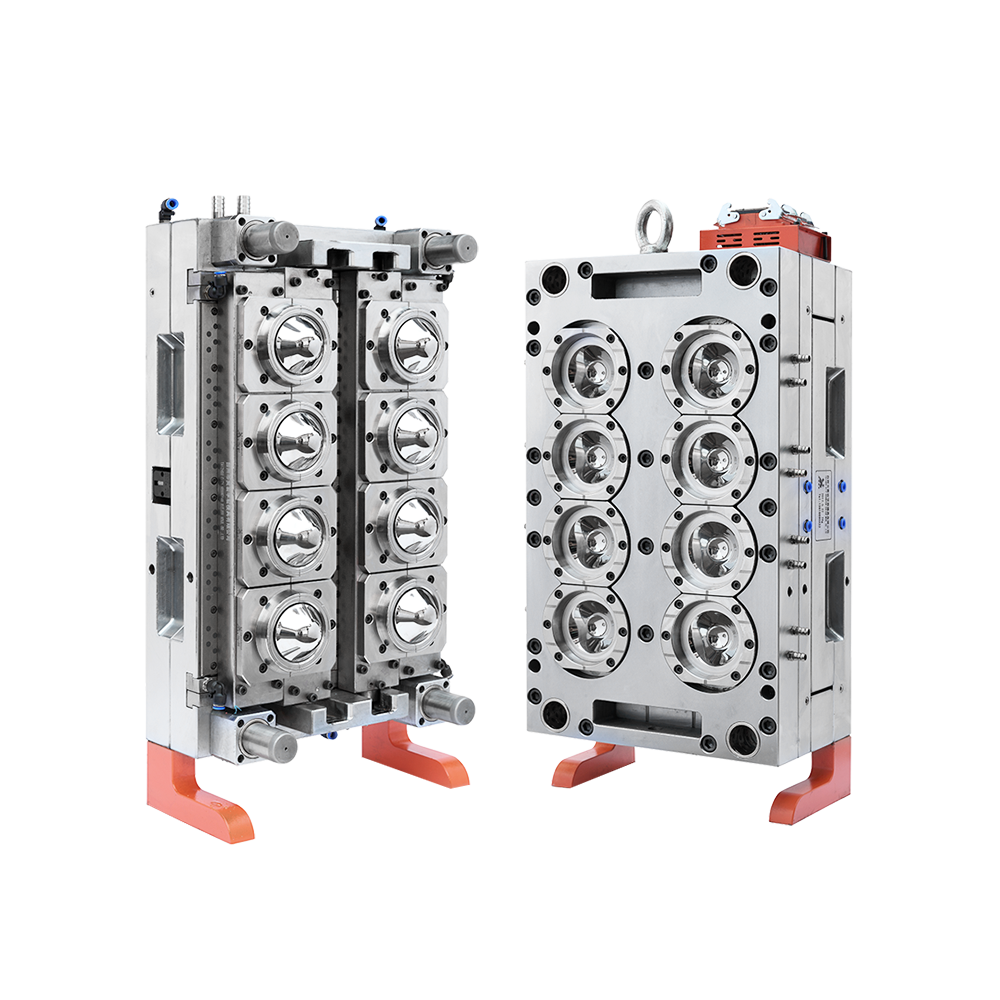

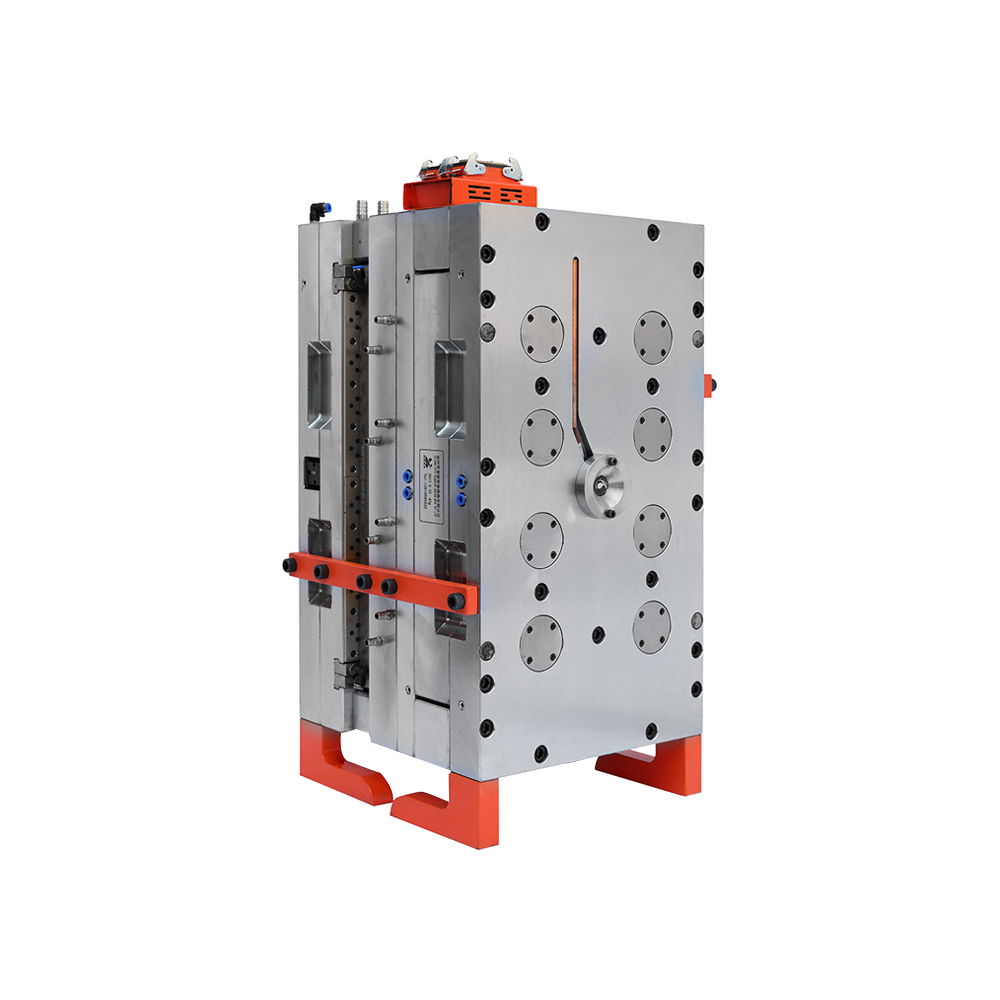

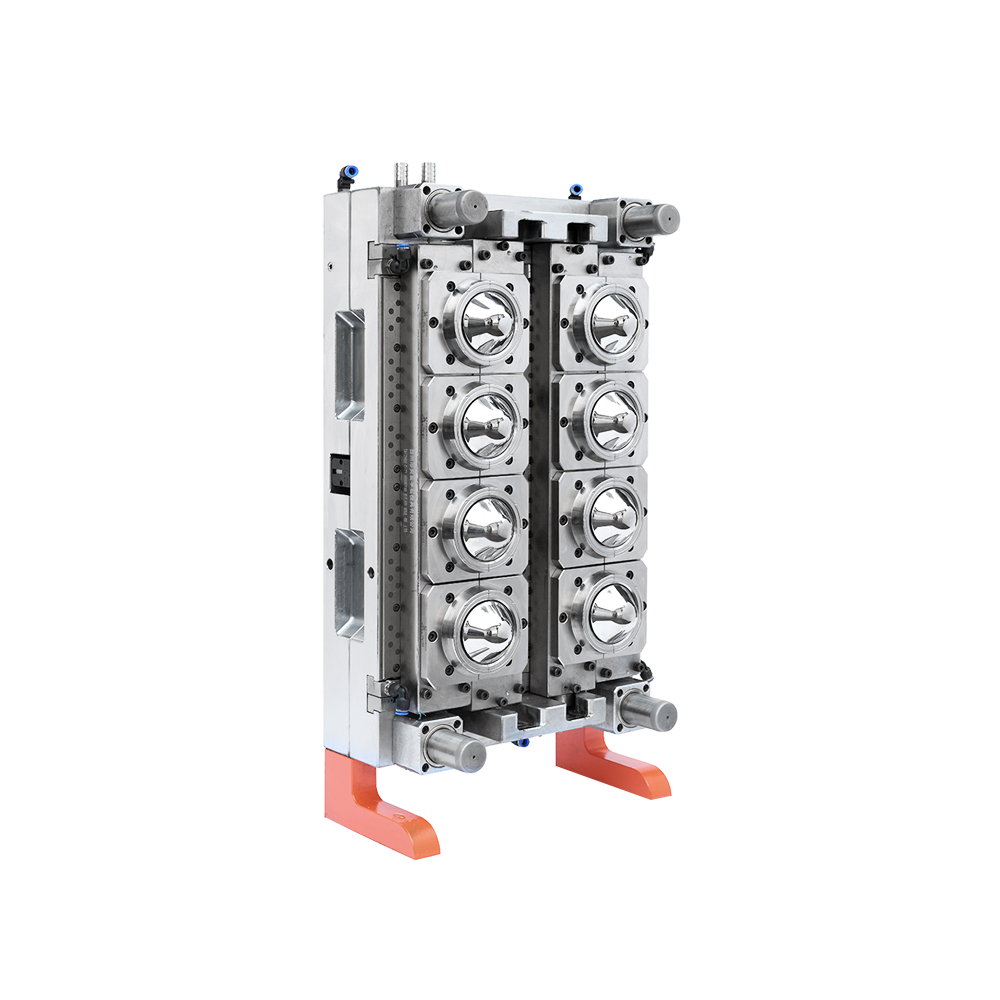

It adopts multi-stage double taper positioning technology, each cavity has a single independent mold clamping, and adopts a multi-stage taper positioning system to ensure mold concentricity (eccentricity within 0.05-0.06mm). The cavity and core of the mold are 2316 (hardness>HRC45). The threaded port is manufactured according to international standards, and the material is imported nitride steel (hardness>HRC60). The unique hot runner system ensures the same pressure and PET flow ratio of each cavity.
  • Lock way Double self-lock
    Preform neck 85mm
    Preform weight 47g
    Core&cavity S136
    Cavity No. 8
    Copper nozzle Material from Jiangxi
    Heating plate P20
    Heater strip Import Germany
    Sprue Runner H13
    Clinder,clinder cap,piston AL
    Valve pin Punch(from Japan)
    Insulation mat(cap) Dupont( from America)
    Copper plate Material from Jiangsu
    Heating ring Material from Guangdong
    Reducing elbow Material from Guangdong
    Temperature controller Material from Ningbo,Japan
    Mould plate 4Cr13/ P20
    Lifetime At least 2million Shots
    Hardness HRC45-HRC48
    Slide block P20
    Heat block P20
    Exporter country standard voltage 380V/3PH/50HZ
    Packing 1.Outside package:Standard wooden cases;2.Inner package: Stretch waterproof film & Each Mold painted anti-rust oil.
    Delivery time Within 40 working days after prepayment
    Term of Payment 30% T/T deposit,70% T/T before delivery after confirmation of testing samples.
    Guarantee 1Year after-sale service.If the mould is damaged without artifical damage,Engineers available to service machinery overseas
    Test parameters and videos will be sent  when testing the mould.

Taizhou Huangyan Xuejun Mould Factory

More than 15 years of experience in mould manufacturing

Huangyan City is located in the middle of the golden coastline of Zhejiang Province. Its mould industry has more than 60 years, and the total production accounts for about 1/10 of the whole country. It is famous as “Mould Town” in China. Taizhou Huangyan Xuejun Mould corporation is located in the Beicheng Industry Zone in Huangyan, surrounded by high-speed rail, highway, airport, port and other facilities, forming a reasonable layout and convenient and fast transportation system.
Huangyan Xuejun Moulding factory is behind of Huangyan, China Mould Expo City, which is the Provincial High-tech Special Industry, the National Torch Program plastic mould base, as well as the first global mould processing equipment and raw material one-stop purchasing center with complete peripheral supporting industry and obvious location advantage. Custom 85mm 47g wide mouth preform mould Maker
Xuejun Mould Factory was founded in 2004s, it is specialized in PET preform moulds, bottle moulds, PET moulds, bottle cap moulds, and various other packaging moulds. Our company has more than 15 years of mould manufacturing experience. During this period, Xuejun’s mould products have been developing to be more precise, more complex and more economical. The technique continues improving and the production lead time continues shorten. Mould production forwards information, refinement and automation in order to adapt the increasing production capacity.
At present, our factory has a series of international advanced mould processing center equipment, such as Mazak, KaFo, Kent, YCM and so on. Compared with domestic equipment, we have the advantages of high precision, high automation production and stable and reliable processing quality.We are widemouth pet jar preform bottle mould Suppliers in China.
The most important asset of an enterprise is talent. Xuejun pays great attention to build a talent team. During the processing of company’s development, we have gathered a group of talents with technical experience and advanced concepts, who can meet customer’s needs and provide professional advice. At the same time, Xuejun's strong technical and design teams provide better professional consulting and services.
At present, Xuejun has strategic cooperation customers from more than 30 countries and regions in the world. Our exquisite design, outstanding product quality and professional after-sales service are well received by customers. For more than ten years, we have been developing in the direction of technology integration, equipment precision, product branding, management information, and operation internationalization. “Xuejuners” always adhere to the development philosophy of “Customer First, Keep Improving” and focus on every detail in product manufacturing so that we can create more value for our customers. And we will continue to provide customers with professional mould technology solutions focusing on the market and customer needs in the future. Xuejun is a reliable mould manufacturer for your choice.
